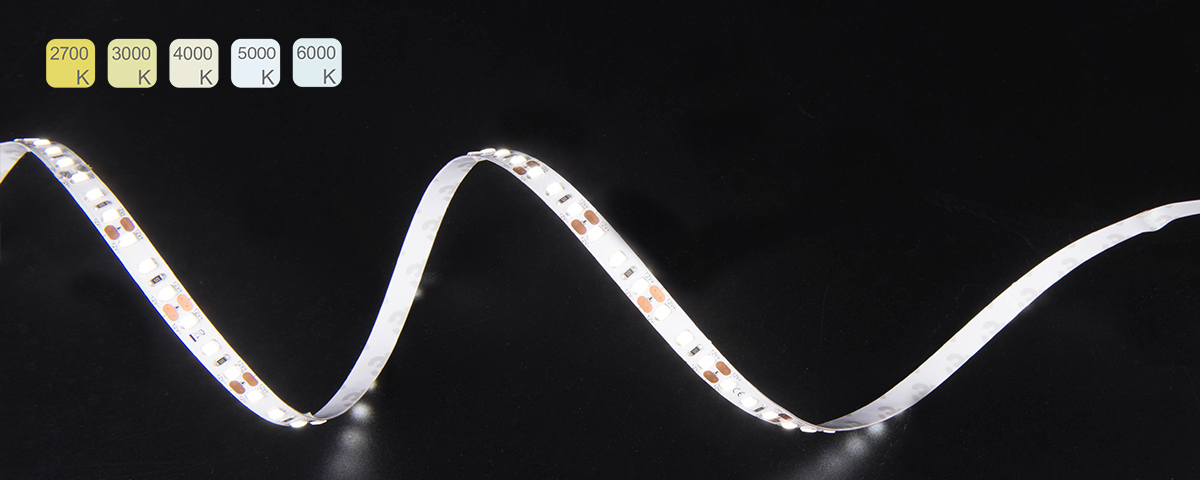

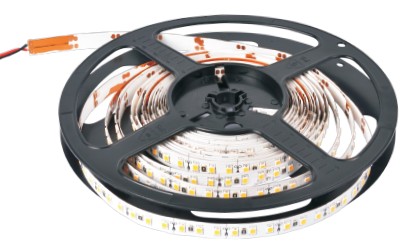

2835 White LED Strip
1. Basic information
PCB Color: Brown, White, Black
IP Grade: IP20, IP65, IP67, IP68.
Working temperature:-20℃~+45℃
Lifespan: >30000Hrs
2. Technical Parameters
| Model No. | Color | LED QTY/m | Size(mm) | LED Type |
Luminous flux(Lm/m) |
CRI(Ra) | Power (W/m) |
| BT-2835CW-30 | 6000K | 30 | 5000*8*1.5 | 2835 Epistar LED | 720 | >82 | 7.2 |
| BT-2835NW-30 | 4000K | 30 | 5000*8*1.5 | 2835 Epistar LED | 685 | >82 | 7.2 |
| BT-2835WW-30 | 3000K | 30 | 5000*8*1.5 | 2835 Epistar LED | 650 | >82 | 7.2 |
| BT-2835CW-60 | 6000K | 60 | 5000*10*1.5 | 2835 Epistar LED | 1440 | >82 | 14.4 |
| BT-2835NW-60 | 4000K | 60 | 5000*10*1.5 | 2835 Epistar LED | 1370 | >82 | 14.4 |
| BT-2835WW-60 | 3000K | 60 | 5000*10*1.5 | 2835 Epistar LED | 1300 | >82 | 14.4 |
| BT-2835CW-120 | 6000K | 120 | 5000*10*1.5 | 2835 Epistar LED | 2880 | >82 | 28.8 |
| BT-2835NW-120 | 4000K | 120 | 5000*10*1.5 | 2835 Epistar LED | 2740 | >82 | 28.8 |
| BT-2835WW-120 | 3000K | 120 | 5000*10*1.5 | 2835 Epistar LED | 2600 | >82 | 28.8 |

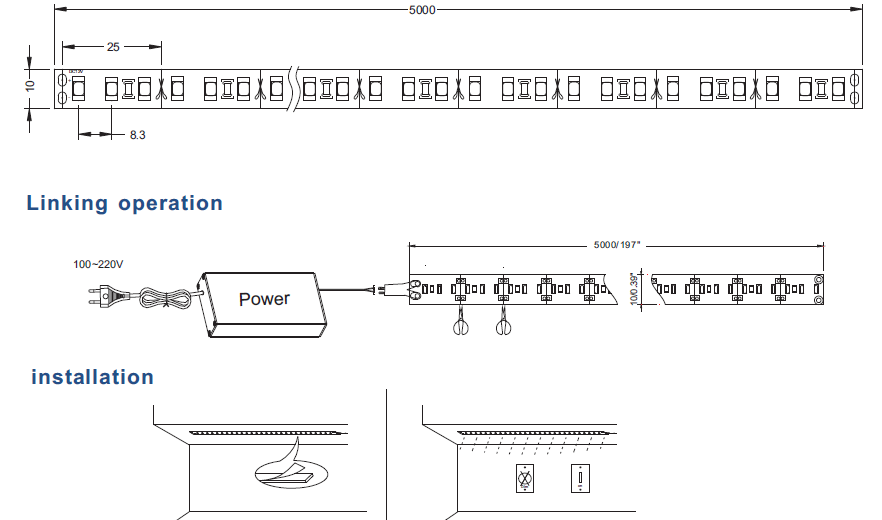

3. Connection
